Agilent/hp 70950B光谱分析仪

品牌：安捷伦 | Agilent | 惠普 | HP

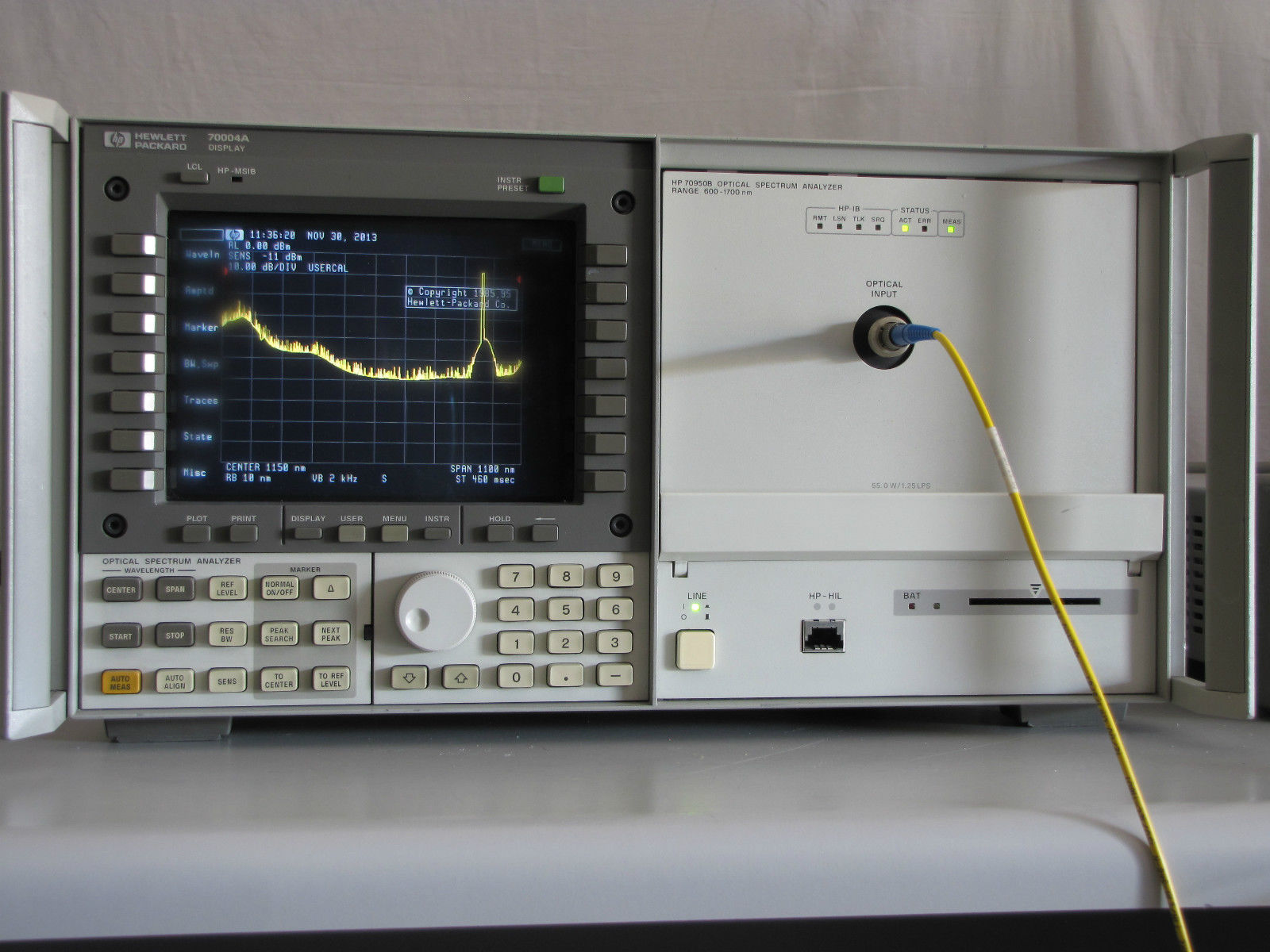

Description : Agilent 70950B Optical Spectrum Analyzer (OSA)
Specs at a glance for the70950B
- Wavelength Range: 600 to 1700 nm
- Dynamic Range: –50 dB >±1 nm
- Wavelength Accuracy: ±1 nm
- Wavelength Linearity: ±0.05 nm, for spans <40 nm
- Wavelength Repeatability: ±0.005 nm
- Polarization Dependency: ±2.5 dB (600 to 1700nm)
-Additional Information
- Resolution Accuracy: ±30% (600 to 1700nm)
- Sweep Time: 40 nm/50 ms
The 70950B or the 71450B Optical Spectrum Analyzer is a diffraction-grating based optical spectrum analyzer that provides spectral measurements of optical power versus wavelength and advanced functions for measuring and characterizing optical components, amplifiers, LEDs, DBF lasers, and Fabry-Perot lasers.
